Applicable scope: hospital, bank data center, base frame type home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Basic Parameters
Batteries materials: Lithium iron phosphate
Series parallel mode (S series, P parallel): 8S2P
Nominal voltage: 25.6V
Nominal capacity: 200Ah

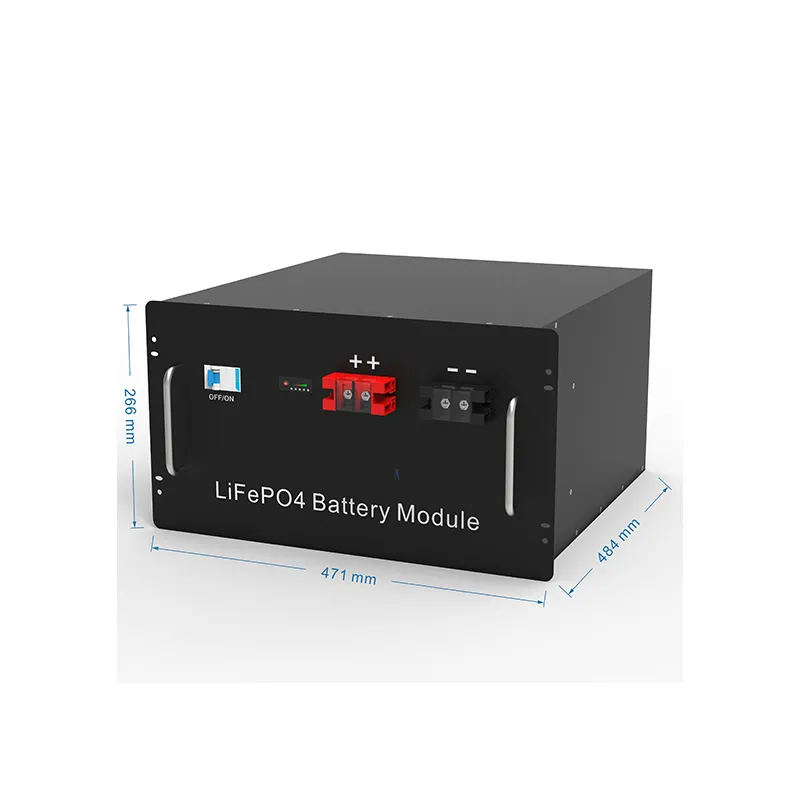

Size( mm): 471*440(484)*266
Weight: 67kg Color: Optional
Parallel support: Parallel terminals are supported
Output port mode: terminal
Charging way: CC/CP/VP ++
Charging current: 0.2C(standard )
Maximum charging current: Max0.5C @25℃
Charge cut-off voltage: 29.2V/CELL
Discharge way: CC/CP/VP
Discharge current: 0.5C
Maximum discharge current: Max0.5C@25℃
Discharge cut-off voltage: 22.4V
According to: LCD
Charging operating temperature: charging 0~+50℃
Discharge operating temperature: discharge. -20~+55℃
The quality assurance period: 36 months
