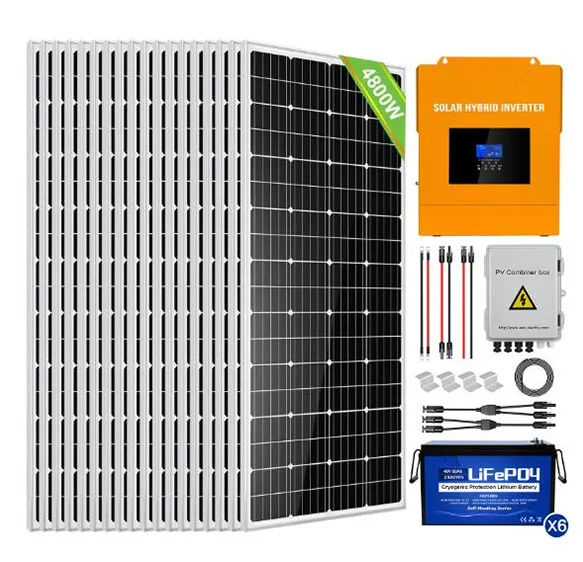

4800W 48V Complete MPPT Off Grid Solar Panel Kit
4800W off-grid solar power complete system, generating 19.2KWh a day under 4 hours full sunshine, which is able to satisfy your daily household electricity consumption. It's very suitable for home, shed, cabin, farm or other energy backup, and it will provide enough power for TV,air/window condition, water heater, refrigerator, coffee maker, microwave and other AC 110V devices.
FEATURE

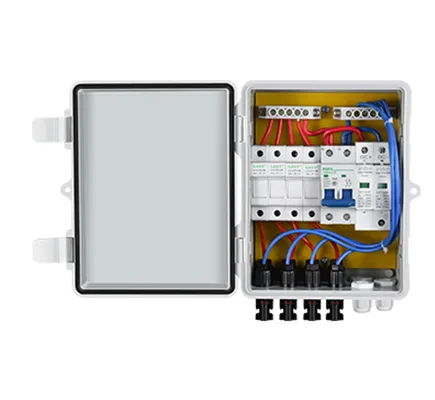

Solar Panel with Combiner Box
Aluminum frame and tempered glass panel for extended outdoor use, allowing the panels to last for decades. The IP66 waterproof panel can also withstand high winds (2400Pa) and snow loads (5400Pa). With 4 String Combiner Box, multiple panels are also easier to connect.

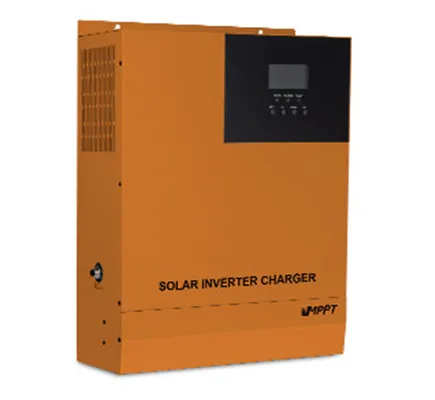

Hybrid Solar Inverter
Composed of 5000W 48V DC-110V AC pure sine wave inverter and 80A MPPT controller. Not only can it be used off-grid, but when there is no sunlight, it can also receive electricity from the grid to charge the battery to meet all-weather use, which will protect appliance life with no electromagnetic pollution and has 99.9% high efficiency power.
Super-High Capacity Li-Battery Bank
With 14400Wh of 6pcs 48V 50Ah lithium batteries, which have higher charging/discharging efficiency and more than 3000 times deep cycles than lead acid batteries. Built-in BMS chips(battery management system), can also prevent the battery from getting damaged and provide multi-protections.
Installation
The more panels there are, the more parts there are, the more complicated the installation is. However, our updated large-scale kits is equipped with all-in-one unit and combiner box to make the installation as easy as possible.
PACKAGE INCLUDE
SPECIFICATION

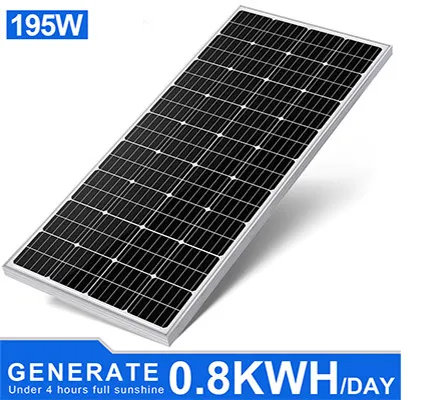

SPECIFICATIONS:
• Rated Power: 195W
• Solar Cell: Monocrystalline
• Maximum/Peak Voltage (Vmp): 19V
• Open Circuit Voltage (Voc): 22.8V
• Short circuit current: 12.23A
• Maximum current: 10.27A
• Output Tolerance: ±3%
• Temperature coefficient of Isc: (10+/-0.01)%/°C
• Temperature coefficient of Voc: (-0.38+/-0.01)%/°C
• Temperature range: -40°C ~ +85°C
• Frame: Aluminum alloy frame
• Weight: 28.2 lbs (12.79 kg)
• Size: 148066835mm (58.3x26.3x1.4 in)
SPECIFICATIONS:

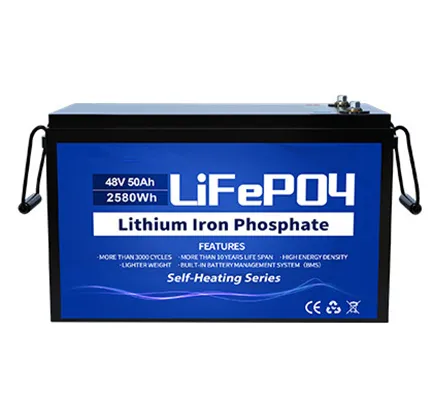

• Battery Capacity: 50Ah
• Battery Power: 2560Wh
• Rated Voltage: 51.2V
• Voltage Range: 40~58V
• Maximum Charge/ Discharge Current: 60A
• Charge Temperature Range: 0-55°C
• Discharge Temperature Range: -20 - 55°C
• Maximum Charge Voltage: 58.4V
• Screw size: M8
• Battery Size: 343*188*245mm (13.5*7.4*9.6 inch)
• Battery Weight: 18.4kg/40.6 lbs
SPECIFICATIONS:
• Battery voltage: 12V/24V
• Charging mode: PWM
• Battery Type: AGM, SLA, GEL, Li
• Max Charge current: 60A
• Discharge current: 60A
• Max Solar input: <55V
• Max Battery Voltage: <34V
• Over-discharge voltage: 11.0V/22.0V (Adjustable)
• Size: 189*127*54mm
• Weight: 650g
SPECIFICATIONS:
Electric Supply Mode:
• Rated Input Voltage: 110V/120V ac
• Input Voltage Range: (90Vac-140Vac) ±2%
• Frequency: 60Hz
• Overload/Short Circuit Protection: Circuit Breaker
• Efficiency: 0.95
• Conversion time (bypass and inverter): 10ms (typical)
• AC reverse protection: Available
• Maximum bypass overload current: 40A
Inverter Mode:
• Output voltage waveform: Pure Sine Wave
• Rated output power (VA): 5000
• Rated output power (W): 5000
• Power factor: 1
• Rated output voltage (Vac): 120Vac
• Output voltage error: ±5%
• Output frequency range (Hz): 60Hz ± 0.3Hz
• Efficiency: >90%
• Peak power: 10000VA
• Loaded motor capability: 4HP
• Output short circuit protection: Circuit breaker
• Bypass breaker specifications: 40A
• Rated battery input voltage: 48V
• Battery voltage range: Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... settable on LCD screen
• Power saving model: Load ≤25W
Electric Supply Mode:
• Battery type: Lead acid or lithium battery
• Maximum charge current: 60A
• Charge current error: 5Adc
• Charge voltage range: 40~58Vdc
• Short circuit protection: Circuit breaker and blown fuse
• Circuit breaker specifications: 40A
• Overcharge protection: Alarm and turn off charging after 1 minute
Solar Charging Mode:
• Maximum PV open circuit voltage: 500Vdc
• PV operating voltage range: 50-145Vdc
• MPPT voltage range: 60-115Vdc
• Battery voltage range: 40~60Vdc
• Maximum output power: 4400W
• PV charging current range (can be set): 0-80A
• Charging short circuit protection: Blown fuse
• Wiring protection: Reverse polarity protection
Certified specifications:
• EMC certification level: EN62040-2, C2
• Operating temperature range: -15°C to 55°C
• Storage temperature range: -25°C ~ 60°C
• Humidity: ≤95% to 93% (Conformal coating protection)
• Noise: ≤60dB
• Heat dissipation: Forced air cooling, variable speed of fan
• Communication interface: USB/RS485
• Extension Cable: 25mm², 3AWG, 1 meter
• Size (LWD): 430mm*338mm*126mm
• Weight (kg): 11
SPECIFICATIONS:

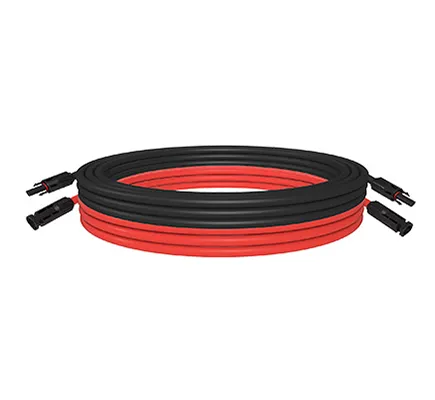

• Cable Type: Connecting Solar Panels to Combiner Box
• Rating Voltage: 600/1000V
• Length: 5 meters (16 ft)
• Conductor: Tinned copper wire
• AWG: 11
• Normal Cross Sectional Area of the Conductor (mm2): 4
• Waterproof: IP 65 Protection
• Temperature: -40°F to +185°F
• Connector: MC4
• Weight: 0.742KG
SPECIFICATIONS:

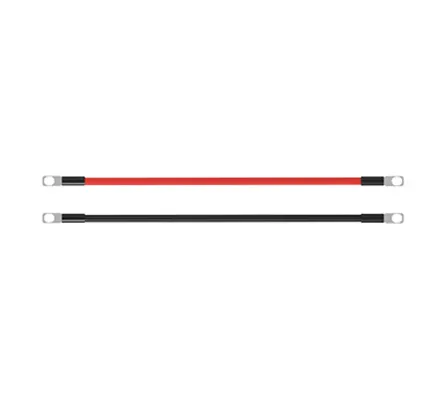

• Cable Type: Connecting Battery to Battery
• Rating Voltage: 600/1000V
• Rating: Current
• Length: 0.35 meters (1.14 ft)
• Conductor: Tinned copper wire
• AWG: 5
• Normal Cross Sectional Area of the Conductor (mm2): 4
• Waterproof: IP 65 Protection
• Temperature: -40°F to +185°F
• Weight: 0.3kg
SPECIFICATIONS:

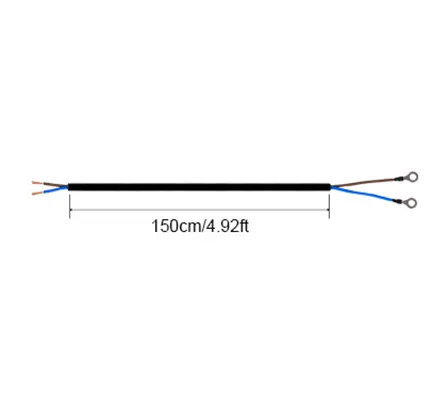

• Cable Type: Connecting Charge Controller to Battery
• Rating Voltage: 600/1000V
• Length: 1.5 meters (4.92 ft)
• Conductor: Tinned copper wire
• AWG: 11
• Normal Cross Sectional Area of the Conductor (mm2): 4
• Waterproof: IP 65 Protection
• Temperature: -40°F to +185°F
• Connector: Lug
• Weight: 0.3kg
CUSTOMIZABLE
Which parts are customizable?
Battery pack's CapacityCustomizable
Battery pack's sizeCustomizable
PCSCustomizable
Battery pack's voltageCustomizable
InverterCustomizable
