400W 12V Complete Off Grid Solar Panel Kit

FEATURE

Ideal Output

The ideal daily power output is 1.6KWH (under 4 hours sunlight), perfectly suitable for RV, shed, cabin, home or other energy backup. It can also provide enough power to run TV,air conditioner, water heater, refrigerator, coffee maker, microwave and other AC 110V devices.

Mono Solar Panel

100Watt aluminum frame and tempered glass panel for extended outdoor use, allowing the panels to last for decades.Monocrystallin panel's compact design with the size of 39.8 x 20.1 x 1.4 inch (Height, Length and width). The IP66 waterproof panel can also withstand high winds (2400Pa) and snow loads (5400Pa).

2560WH Lithium Battery

The lithium battery has a built-in Battery Management System (BMS) that can protect it from overcharging, deep discharge, overload, overheating and short circuit, and low self-discharge rate. Can be used in parallel, more suitable for 24V solar panel kit, less wires, less heat loss and less balance issue.

1500W Off-grid Solar Inverter

With the pure sine wave inverter, DC 24V can be transformed into AC 110V and prevents appliances from overload,overcurrent etc. You can easily check the battery remain voltage and master your electricity duration. It's suitable for all appliances such as microwave, coffee maker and refrigerator.

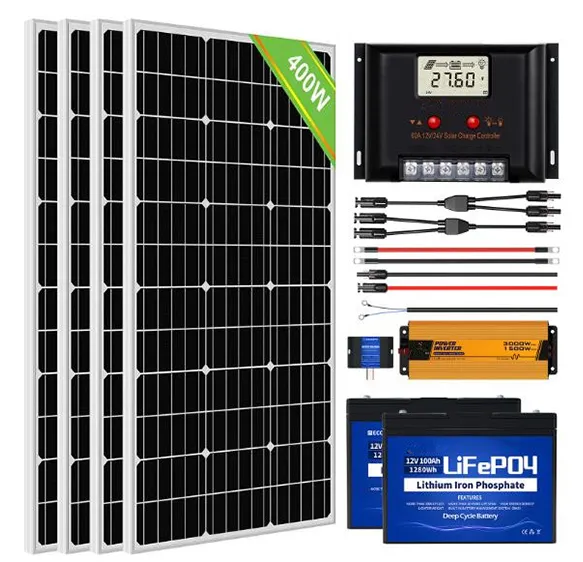

PACKAGE INCLUDE

400W Solar Power System
Solar Panel	100Watt Solar Panel	4pcs
Combiner Box	60A PWM Solar Charger Controller	1pc
inverter	1500W Solar Pure Sine Wave Inverter	1pc
Lithium Battery	100AH Lithium Battery	2pcs
Controller	Solar Cable&Y-Branch Connector	1pair
Cable	Controller-to-Battery Cable	1pair
Cable	Battery-to-Battery Cable	1pair
Brackets	Z Brackets	2pcs

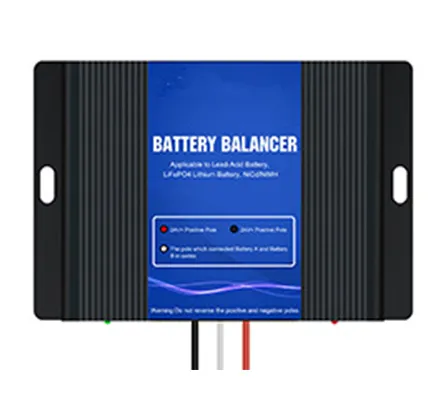

Equalizer	24V lithium electricity equalizer	1pc

SPECIFICATION

SPECIFICATIONS:

• Rated Power: 100W

• Solar Cell: Monocrystalline

• Maximum/Peak Voltage(Vmp): 18V

• Open Circuit Voltage(Voc): 21.6 V

• Short circuit current(lSC): 6.11A

• Maximum current(lMP): 5.55A

• Output Tolerance: ±3%

• Temperate coefficient of lsc: (010+/-0.01)%/°C

• Temperate coefficient of Voc: -(0.38+/-0.01)%/°C

• Temperature range: -40℃~ +85°C

• Frame: Aluminum alloy frame

• Length of extension cable: 90cm(2.95ft)

• Size of extension cable: 4mm²(11AWG)/MC4 Connector

• Weight: 13.14 lbs(5.96 kg)

• Size: 1010x510x35mm(39.8 x20.1 x1.4 in)

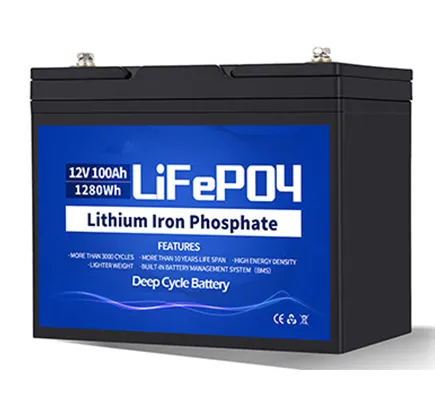

SPECIFICATIONS:

• Battery Capacity: 100Ah

• Battery Power: 1200Wh

• Battery Voltage: 12V

• Maximum Charge/ Discharge Current: 80A/100A

• Charge Temperature Range: 0-55°C

• Discharge Temperature Range: -20 - 55°C

• Maximum Charge Voltage: 14.5V

• Discharge Cut-Off Voltage: 10V

• Screw size: M8

• Battery Size: 260*168*209mm (10.2*6.6*8.2inch)

• Battery Weight: 22.9 lbs

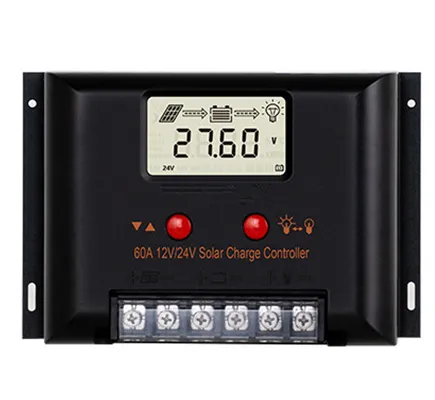

SPECIFICATIONS:

• Battery voltage: 12V/24V

• Charging mode: PWM

• Battery Type: AGM, SLA, GEL, Li

• Max Charge current: 60A

• Discharge current: 60A

• Max Solar input: <55V

• Max Battery Voltage: <34V

• Over-discharge voltage: 11.0V/22.0V (Adjustable)

• Size: 189*127*54mm

• Weight: 650g

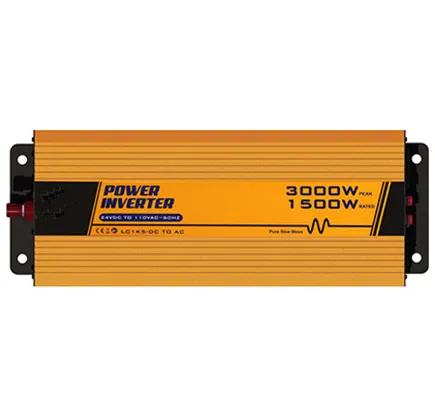

SPECIFICATIONS:

• Model: 1500W 24V-110V

• Input Voltage: 24V

• Rated Power: 1500W

• Peak Power: 3000W

• Output Waveform: Pure Sine Wave

• Output Voltage: 110Vac

• Extension Cable: 10mm², 7AWG, 0.8 meter

• Output Frequency: 60HZ ± 0.3HZ

• Cooling: Cooling fan control by temperature

• AC Output Sockets: 1

• Temperature: -20°C-40°C

• Battery Nominal Voltage: 2x12V

• Optimize Current: 0-10A

• Quiescent Current: <3mA

• Low Voltage Disconnect: 10V

• Dimensions: 8.8*6.1*2.4cm (3.46*2.40*0.94 inch)

• Weight: 0.1kg (0.22 lbs)

SPECIFICATIONS:

• Cable Type: Connecting Solar Panels to Charge Controllers

• Rating Voltage: 600/1000V

• Length: 5 meters (16 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: MC4

• Weight: 0.742KG

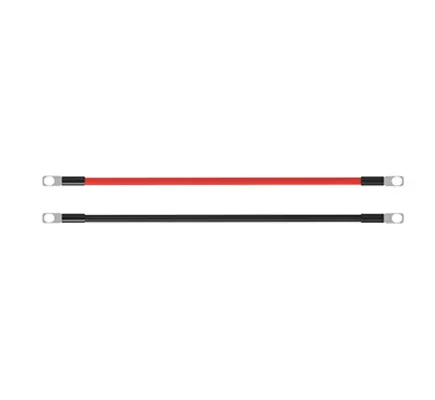

SPECIFICATIONS:

• Cable Type: Connecting Battery to Battery

• Rating Voltage: 600/1000V

• Rating: Current

• Length: 0.35 meters (1.14 ft)

• Conductor: Tinned copper wire

• AWG: 5

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Weight: 0.3kg

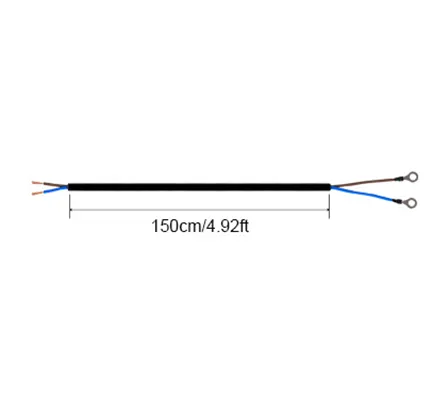

SPECIFICATIONS:

• Cable Type: Connecting Charge Controller to Battery

• Rating Voltage: 600/1000V

• Length: 1.5 meters (4.92 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: Lug

• Weight: 0.3kg
