3900W 48V Complete MPPT Off Grid Solar Panel Kit

FEATURE

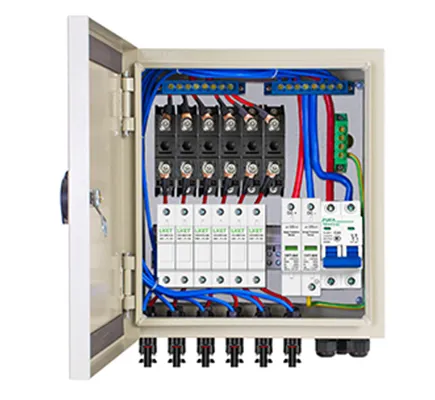

Solar Panel with Combiner Box

Aluminum frame and tempered glass panel for extended outdoor use, allowing the panels to last for decades. The IP66 waterproof panel can also withstand high winds (2400Pa) and snow loads (5400Pa). With 6 String Combiner Box, multiple panels are also easier to connect.

Hybrid Solar Inverter

Composed of 3500W 48V DC-110V AC pure sine wave inverter and 80A MPPT controller. Not only can it be used off-grid, but when there is no sunlight, it can also receive electricity from the grid to charge the battery to meet all-weather use, which will protect appliance life with no electromagnetic pollution and has 99.9% high efficiency power.

Super-High Capacity Li-Battery Bank

With 9600Wh of 4pcs 50Ah lithium batteries, which have higher charging/discharging efficiency and more than 3000 times deep cycles than lead acid batteries. Built-in BMS chips(battery management system), can also prevent the battery from getting damaged and provide multi-protections.

Installation

Firstly, like our wiring diagram, Connect 4 batteries in series to form a 48V battery Bank, and then connect 2 battery Banks in parallel. Next, connect the battery pack to the All-in-one unit. Then, every 4pcs panels will be connected to form a 48V pack, and then the 5 groups of panels will be connected to the combiner box one by one. Finally, connect the All-in-one to the combiner box.

PACKAGE INCLUDE

4800W Solar Power System
Model	Description	Quantity
Solar Panel	195Watt Solar Panel	24pcs
Controller	5000W 48V Hybrid Solar Charger Inverter	1pc
Lithium Battery	48V 50AH Lithium Battery	6pcs
Combiner Box	4 String Combiner Box	1pc
Cable	16ft 11AWG Solar Extension Cable	3pair
Cable	10AWG Lithium Battery Cable	2pair
Cable	Controller-to-Battery Cable	1pair
Cable	Battery-to-Battery Cable	1pair
Brackets	Z Brackets	1pair

SPECIFICATION

SPECIFICATIONS:

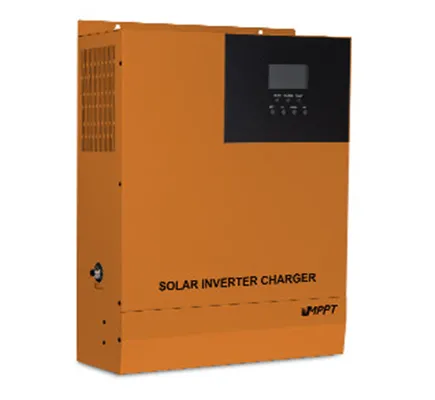

Electric Supply Mode:

• Rated Input Voltage: 110V/120V ac

• Input Voltage Range: (90Vac-140Vac) ±2%

• Frequency: 60Hz

• Overload/Short Circuit Protection: Circuit Breaker

• Efficiency: 0.95

• Conversion time (bypass and inverter): 10ms (typical)

• AC reverse protection: Available

• Maximum bypass overload current: 40A

Inverter Mode:

• Output voltage waveform: Pure Sine Wave

• Rated output power (VA): 5000

• Rated output power (W): 5000

• Power factor: 1

• Rated output voltage (Vac): 120Vac

• Output voltage error: ±5%

• Output frequency range (Hz): 60Hz ± 0.3Hz

• Efficiency: >90%

• Peak power: 10000VA

• Loaded motor capability: 4HP

• Output short circuit protection: Circuit breaker

• Bypass breaker specifications: 40A

• Rated battery input voltage: 48V

• Battery voltage range: Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... settable on LCD screen

• Power saving model: Load ≤25W

Electric Supply Mode:

• Battery type: Lead acid or lithium battery

• Maximum charge current: 60A

• Charge current error: 5Adc

• Charge voltage range: 40~58Vdc

• Short circuit protection: Circuit breaker and blown fuse

• Circuit breaker specifications: 40A

• Overcharge protection: Alarm and turn off charging after 1 minute

Solar Charging Mode:

• Maximum PV open circuit voltage: 500Vdc

• PV operating voltage range: 50-145Vdc

• MPPT voltage range: 60-115Vdc

• Battery voltage range: 40~60Vdc

• Maximum output power: 4400W

• PV charging current range (can be set): 0-80A

• Charging short circuit protection: Blown fuse

• Wiring protection: Reverse polarity protection

Certified specifications:

• EMC certification level: EN62040-2, C2

• Operating temperature range: -15°C to 55°C

• Storage temperature range: -25°C ~ 60°C

• Humidity: ≤95% to 93% (Conformal coating protection)

• Noise: ≤60dB

• Heat dissipation: Forced air cooling, variable speed of fan

• Communication interface: USB/RS485

• Extension Cable: 25mm², 3AWG, 1 meter

• Size (LWD): 430mm*338mm*126mm

• Weight (kg): 11

SPECIFICATIONS:

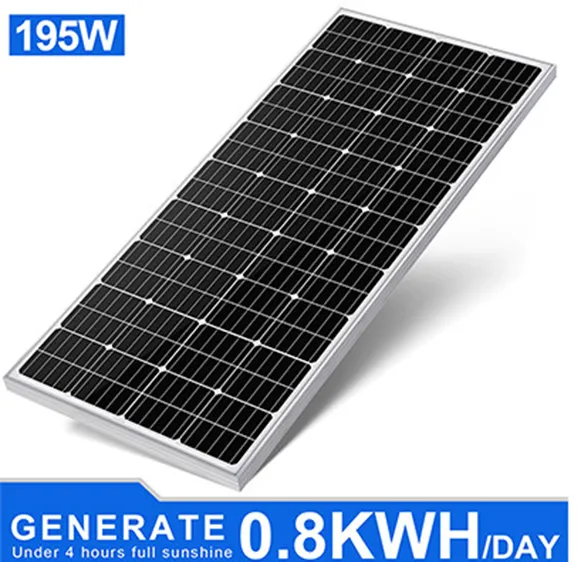

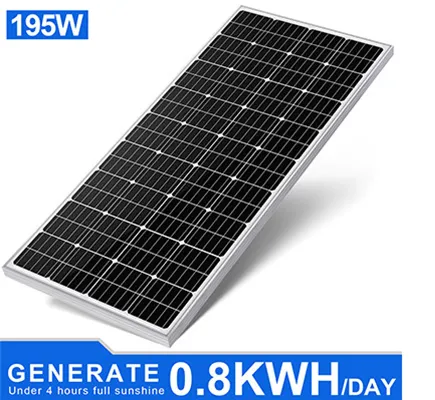

• Rated Power: 195W

• Solar Cell: Monocrystalline

• Maximum/Peak Voltage (Vmp): 19V

• Open Circuit Voltage (Voc): 22.8V

• Short circuit current: 12.23A

• Maximum current: 10.27A

• Output Tolerance: ±3%

• Temperature coefficient of Isc: (10+/-0.01)%/°C

• Temperature coefficient of Voc: (-0.38+/-0.01)%/°C

• Temperature range: -40°C ~ +85°C

• Frame: Aluminum alloy frame

• Weight: 28.2 lbs (12.79 kg)

• Size: 148066835mm (58.3x26.3x1.4 in)

SPECIFICATIONS:

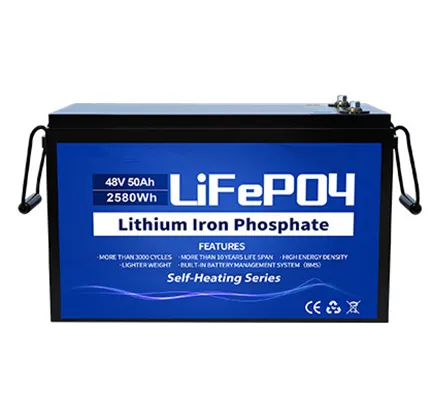

• Battery Capacity: 50Ah

• Battery Power: 2560Wh

• Rated Voltage: 51.2V

• Voltage Range: 40~58V

• Maximum Charge/ Discharge Current: 60A

• Charge Temperature Range: 0-55°C

• Discharge Temperature Range: -20 - 55°C

• Maximum Charge Voltage: 58.4V

• Screw size: M8

• Battery Size: 343*188*245mm (13.5*7.4*9.6 inch)

• Battery Weight: 18.4kg/40.6 lbs

SPECIFICATIONS:

• Number of Max. connection solar array: 6

• Max input current of single solar array: 10A

• Total input current of solar array: 60A

• Max input solar system wattage (12/24/48V): 1080/2160/4320W

• Max Input Voltage of single solar array: 250V

• Max Output Voltage: 250V

• Number of circuit breaker poles: 2

• Circuit breaker rated current: 63A

• Product Weight: 4.9kg

• Product Size: 260320115mm

SPECIFICATIONS:

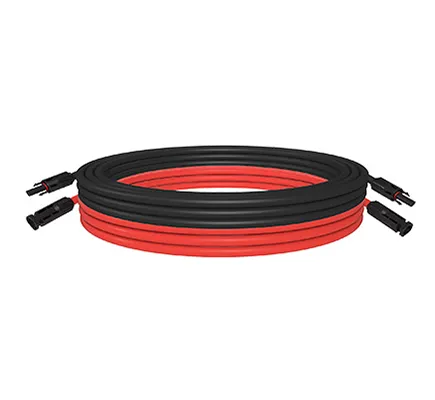

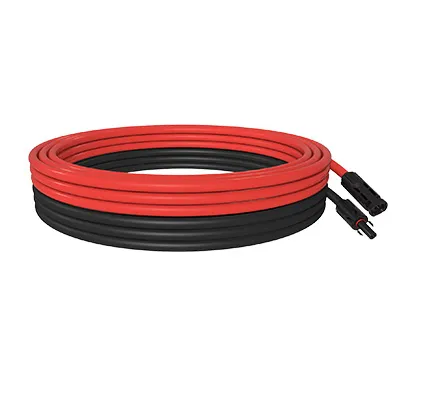

• Cable Type: Connecting Solar Panels to Combiner Box

• Rating Voltage: 600/1000V

• Length: 5 meters (16 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: MC4

• Weight: 0.742KG

• Cable Type: Connecting Solar Panels to Charge Controllers

• Rating Voltage: 600/1000V

• Length: 5 meters (16 ft)

• Conductor: Tinned copper wire

• AWG: 8

• Normal Cross Sectional Area of the Conductor (mm2): 8

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: MC4

• Weight: 1.2KG

SPECIFICATIONS:

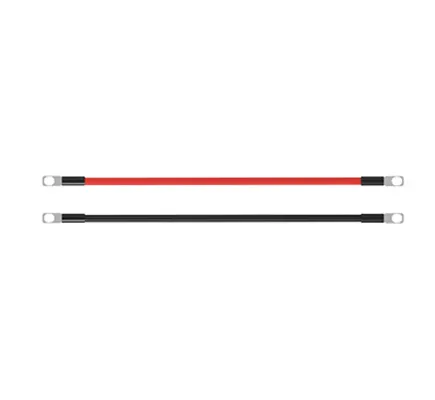

• Cable Type: Connecting Battery to Battery

• Rating Voltage: 600/1000V

• Rating: Current

• Length: 0.35 meters (1.14 ft)

• Conductor: Tinned copper wire

• AWG: 5

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Weight: 0.3kg

SPECIFICATIONS:

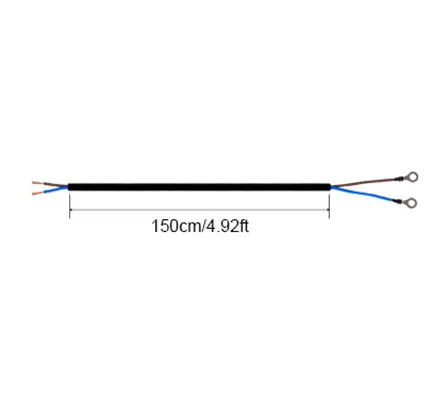

• Cable Type: Connecting Charge Controller to Battery

• Rating Voltage: 600/1000V

• Length: 1.5 meters (4.92 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: Lug

• Weight: 0.3kg
