200W 12V Complete Off Grid Solar Panel Kit

FEATURE

Ideal Output Power

800Wh daily output depends on the 4 hours sunlight availability. Suitable for RV, home, camper, trailer, boats, cabins, etc. wherever you need power.

Solar Panel

21% High solar cell efficiency. Corrosion-resistant aluminum frame for outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

Complete Solar Panel Kit with 20Ah Lithium Battery

Full charge capacity of 2pcs batteries is 480WH. Rechargeable cycles more than 3000 times, a service life more than 10 years. High efficiency of charge/discharge, possible to extend the capacity in parallel connection, easily setting up.

Pure sine wave inverter

600W Pure Sine Wave Off Grid Solar Inverter With LCD display, transforming DC into AC, extending the use of this system, and user adjustable option for lead acid battery and lithium battery.

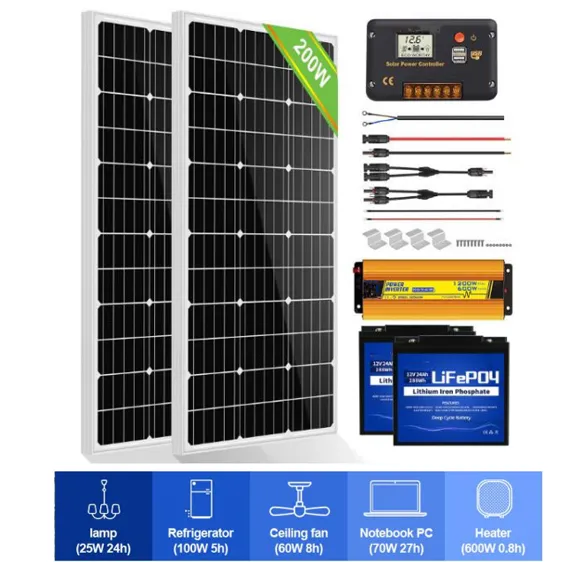

PACKAGE INCLUDE

200w Solar Power System
Model	Description	Quantity
Solar Panel	100Watt Solar Panel	2pcs
Combiner Box	30A PWM Solar Charger Controller	1pc
inverter	600W Solar Pure Sine Wave Inverter	1pc
Lithium Battery	24AH Lithium Battery	2pcs
Controller	Solar Cable&Y-Branch Connector	1pair
Cable	Controller-to-Battery Cable	1pair
Cable	Battery-to-Battery Cable	1pair
Brackets	4-Z Brackets	2pcs

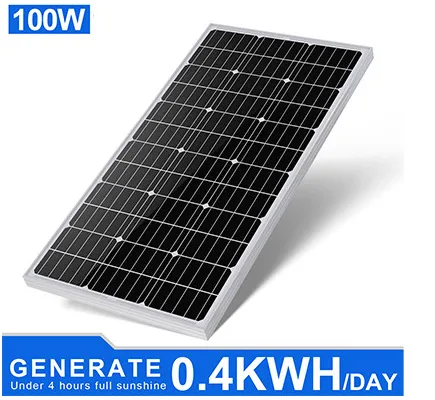

SPECIFICATION

SPECIFICATIONS:

• Rated Power: 100W

• Solar Cell: Monocrystalline

• Maximum/Peak Voltage(Vmp): 18V

• Open Circuit Voltage(Voc): 21.6 V

• Short circuit current(lSC): 6.11A

• Maximum current(lMP): 5.55A

• Output Tolerance: ±3%

• Temperate coefficient of lsc: (010+/-0.01)%/°C

• Temperate coefficient of Voc: -(0.38+/-0.01)%/°C

• Temperature range: -40℃~ +85°C

• Frame: Aluminum alloy frame

• Length of extension cable: 90cm(2.95ft)

• Size of extension cable: 4mm²(11AWG)/MC4 Connector

• Weight: 13.14 lbs(5.96 kg)

• Size: 1010x510x35mm(39.8 x20.1 x1.4 in)

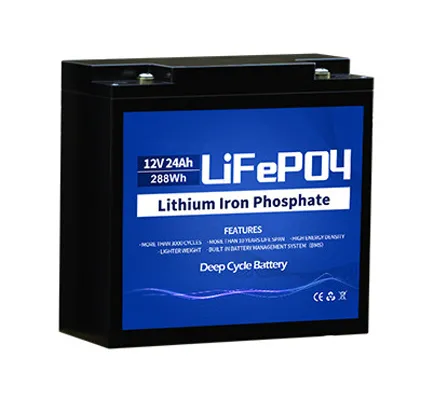

SPECIFICATIONS:

• Battery Capacity: 24Ah

• Battery Power: 288Wh

• Battery Voltage: 12V

• Maximum Charge/ Discharge Current: 20A

• Charge Temperature Range: 0-55°C

• Discharge Temperature Range: -20 - 55°C

• Maximum Charge Voltage: 14.5V

• Discharge Cut-Off Voltage: 10V

• Screw size: M5

• Battery Size: 7.1*6.3*3 inch (18*16*7.6cm)

• Battery Weight: 2.64kg (8.0lb)

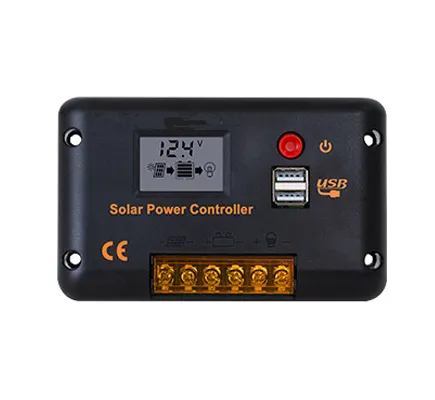

SPECIFICATIONS:

• Battery voltage: 12V/24V

• Charging mode: PWM

• Max Charge current: 30A

• Discharge current: 30A

• Max Solar input Voltage: <50V

• Charge voltage: 13.7V/27.4V

• Discharge stop: 10.7V/21.4V

• Discharge reconnect: 12.6V/25.2V

• Weight: 150g

• Size: 138*82*30mm

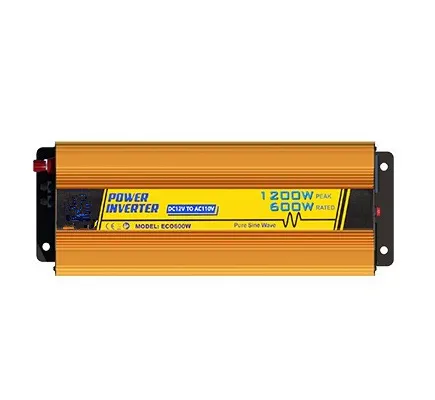

SPECIFICATIONS:

• Model: 600W 12V-110V

• Input Voltage: 12V

• Rated Power: 600W

• Peak Power: 1200W

• Output Waveform: Pure Sine Wave

• Output Voltage: 110Vac

• USB Output: 5V 1.2A

• Extension Cable: 6mm², 9AWG, 1 meter

• Output Frequency: 60HZ ± 0.3HZ

• Cooling: Cooling fan control by temperature

• AC Output Sockets: 1

• Temperature: -20°C-40°C

SPECIFICATIONS:

• Cable Type: Connecting Solar Panels to Charge Controllers

• Rating Voltage: 600/1000V

• Length: 5 meters(16 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: lP 65 Protection

• Temperature: -40°F to +185°F

• Connector: MC4

• Weight: 0.742KG

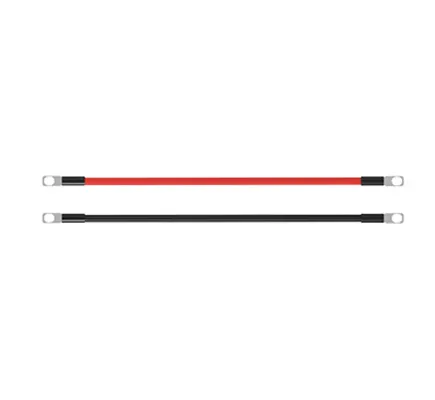

SPECIFICATIONS:

• Cable Type: Connecting Battery to Battery

• Rating Voltage: 600/1000V

• Rating Current: 30A

• Length: 30cm

• Conductor: Tinned copper wire

• AWG: 6mm²

• Waterproof: lP 65 Protection

• Temperature: -40°F to +185°F

• Connector Lug: (6mm)

• Weight: 0.046kg

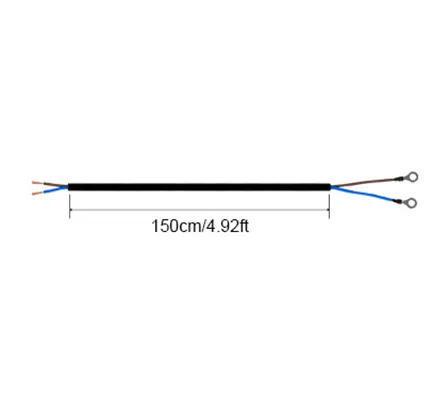

SPECIFICATIONS:

• Cable Type: Connecting Charge Controller to Battery

• Rating Voltage: 600/1000V

• Length: 1.5 meters(4.92 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: lP 65 Protection

• Temperature: -40°F to +185°F

• Connector: Lug

• Weight: 0.3kg
