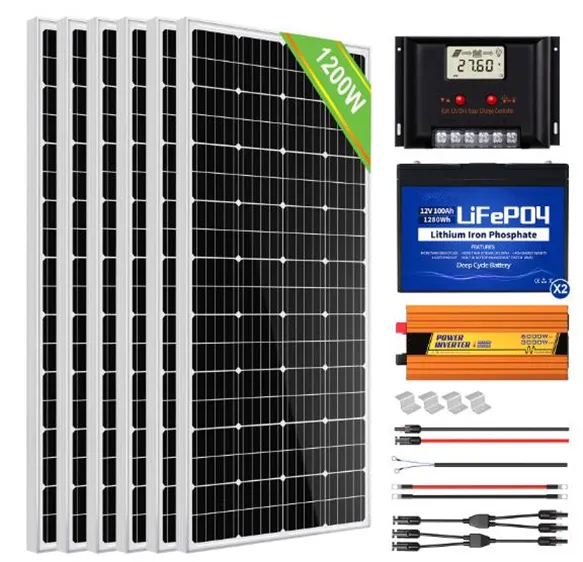

1200W 24V Complete Off Grid Solar Panel Kit

FEATURE

Ideal Output Power-5KWh/day

This 1200W solar panel complete system generates about 5KWh per day under 4 hours full sunlight condition, very suitable for home, shed, cabin, RV or other energy backpack, and it provides enough power for air condition, TV, refrigerator, coffee maker, microwave and other AC 110V devices.

Durable Mono Solar Panel

ZEM monocrystalline solar panel is compact with enhanced aluminum frame and tempered glass. The size is 58.3*26.2*1.4 inches. IP66 class ingress-proof, strong enough to withstand strong winds (2400Pa) and snow loads (5400Pa), worry-free for outdoor uses.

3500W 24V DC-110V AC Pure Sine Wave Inverter

Advanced pure sine wave technology provides stable AC equivalent to grid power which will protect and extend the lifespan of your electronics and appliances. Rated power 3500W, peak 7000W for the surge during start-up. Over 91% of conversion efficiency, converts 24VDC to 110VAC.

High Capacity Li-Battery bank

2pcs 100Ah lithium batteries, large enough to store 2.4KWh of power. New type lithium battery which has higher charge/discharge efficiency and more than 3000 times deep cycles. Over 10 years of lifespan, much longer than lead acid batteries. With built-in BMS(battery management system), preventing the lithium battery from overcharge, overdischarge, overheat and short circuit.

PACKAGE INCLUDE

1200W Solar Power System
Model	Description	Quantity
Solar Panel	195Watt Solar Panel	6pcs
Combiner Box	60A PWM Solar Charger Controller	1pc
inverter	3500W Solar Pure Sine Wave Inverter	1pc
Lithium Battery	100AH Lithium Battery	2pcs
Controller	Solar Cable&Y-Branch Connector	1pair
Cable	Controller-to-Battery Cable	1pair
Cable	Battery-to-Battery Cable	1pair
Brackets	Z Brackets	2pcs
Fuse	150A fuse	1pc

SPECIFICATION

SPECIFICATIONS:

• Rated Power: 195W

• Solar Cell: Monocrystalline

• Maximum/Peak Voltage (Vmp): 19V

• Open Circuit Voltage (Voc): 22.8V

• Short circuit current: 12.23A

• Maximum current: 10.27A

• Output Tolerance: ±3%

• Temperature coefficient of Isc: (10+/-0.01)%/°C

• Temperature coefficient of Voc: (-0.38+/-0.01)%/°C

• Temperature range: -40°C ~ +85°C

• Frame: Aluminum alloy frame

• Weight: 28.2 lbs (12.79 kg)

• Size: 148066835mm (58.3x26.3x1.4 in)

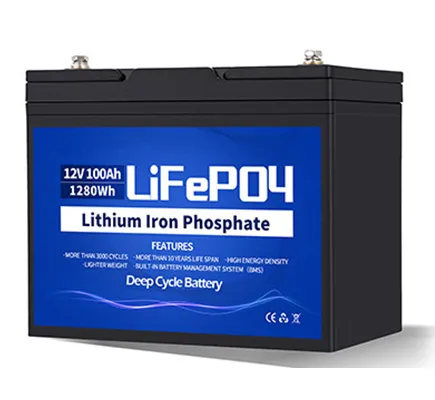

SPECIFICATIONS:

• Battery Capacity: 100Ah

• Battery Power: 1200Wh

• Battery Voltage: 12V

• Maximum Charge/ Discharge Current: 80A/100A

• Charge Temperature Range: 0-55°C

• Discharge Temperature Range: -20 - 55°C

• Maximum Charge Voltage: 14.5V

• Discharge Cut-Off Voltage: 10V

• Screw size: M8

• Battery Size: 260*168*209mm (10.2*6.6*8.2inch)

• Battery Weight: 22.9 lbs

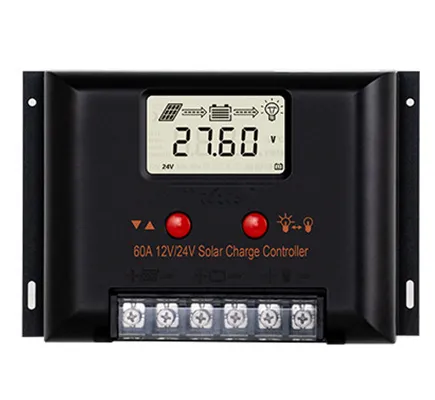

SPECIFICATIONS:

• Battery voltage: 12V/24V

• Charging mode: PWM

• Battery Type: AGM, SLA, GEL, Li

• Max Charge current: 60A

• Discharge current: 60A

• Max Solar input: <55V

• Max Battery Voltage: <34V

• Over-discharge voltage: 11.0V/22.0V (Adjustable)

• Size: 189*127*54mm

• Weight: 650g

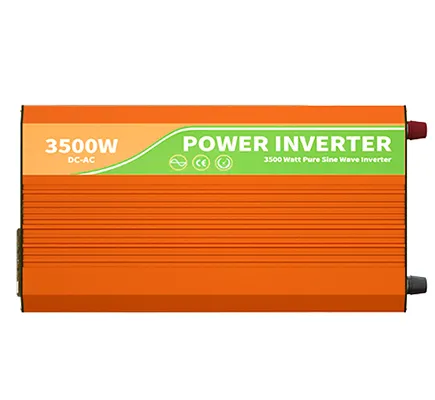

SPECIFICATIONS:

• Model: 3500W 24V-110V

• Input Voltage: 24V

• Rated Power: 3500W

• Peak Power: 7000W

• Output Waveform: Pure Sine Wave

• Extension Cable: 16mm², 5AWG, 0.5 meter

• Output Voltage: 110Vac

• Output Frequency: 60HZ ± 0.3HZ

• Cooling: Cooling fan control by temperature

• AC Output Sockets: 2

• Temperature: -20°C-40°C

SPECIFICATIONS:

• Cable Type: Connecting Solar Panels to Charge Controllers

• Rating Voltage: 600/1000V

• Length: 5 meters (16 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: MC4

• Weight: 0.742KG

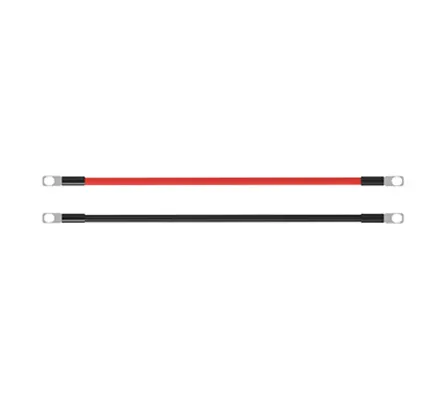

SPECIFICATIONS:

• Cable Type: Connecting Battery to Battery

• Rating Voltage: 600/1000V

• Rating: Current

• Length: 0.35 meters (1.14 ft)

• Conductor: Tinned copper wire

• AWG: 5

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Weight: 0.3kg

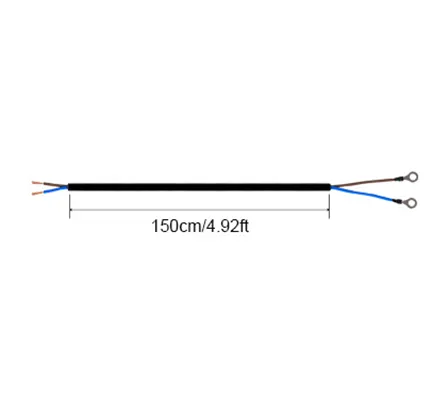

SPECIFICATIONS:

• Cable Type: Connecting Charge Controller to Battery

• Rating Voltage: 600/1000V

• Length: 1.5 meters (4.92 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: IP 65 Protection

• Temperature: -40°F to +185°F

• Connector: Lug

• Weight: 0.3kg
