200W/390W Golf Cart Solar Panel Kit

FEATURE

Drive Further with Solar Power

800Wh/1520Wh daily outdoor power depends on the 4 hours sunlight availability. Providing up to 33% more range between recharges than non-solar golf carts

Extend Battery Life

Using solar power to charge your batteries can avoid low speed or flameout situation caused by insufficient power while driving, and extends their life significantly.In addition，controller has protection for overcharge, reverse current, overheat and reverse wiring

Sturdy and Durable

IP65 waterproof, 21% High solar cell efficiency. Corrosion-resistant aluminum frame for outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

Easy Monitor

Visual display of charging current, voltage，let you easily track the battery charging state.

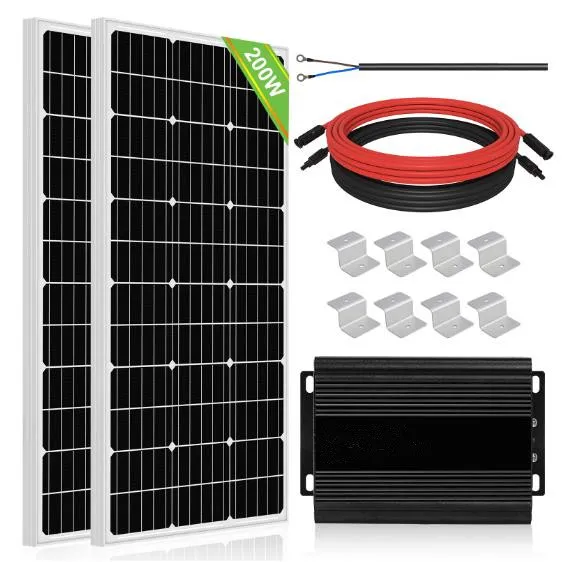

PACKAGE INCLUDE

200W System		400W System
Description	Quantity	Description	Quantity
100Watt Solar Panel	2pcs	195Watt Solar Panel	2pcs
48V/60V/72V Booster controller	1pair	48V/60V/72V Booster controller	1pair
Controller-to-Battery Cable	1pair	Controller-to-Battery Cable	1pair
Battery-to-Battery Cable	1pair	Battery-to-Battery Cable	1pair
4-Z Brackets	2pcs	4-Z Brackets	2pcs

SPECIFICATION

SPECIFICATIONS:

• Rated Power: 100W

• Solar Cell: Monocrystalline

• Maximum/Peak Voltage(Vmp): 18V

• Open Circuit Voltage(Voc): 21.6 V

• Short circuit current(lSC): 6.11A

• Maximum current(lMP): 5.55A

• Output Tolerance: ±3%

• Temperate coefficient of lsc: (010+/-0.01)%/°C

• Temperate coefficient of Voc: -(0.38+/-0.01)%/°C

• Temperature range: -40℃~ +85°C

• Frame: Aluminum alloy frame

• Length of extension cable: 90cm(2.95ft)

• Size of extension cable: 4mm²(11AWG)/MC4 Connector

• Weight: 13.14 lbs(5.96 kg)

• Size: 1010x510x35mm(39.8 x20.1 x1.4 in)

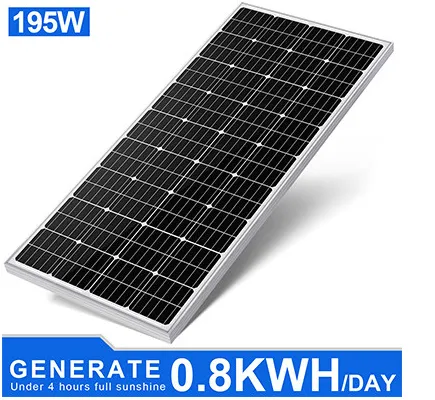

SPECIFICATIONS:

• Rated Power: 195W

• Solar Cell: Monocrystalline

• Maximum/Peak Voltage(Vmp): 19V

• Open Circuit Voltage(Voc): 22.8V

• Short circuit current: 12.23A

• Maximum current: 10.27A

• Output Tolerance: ±3%

• Temperate coefficient of lsc: (010+/-0.01)%/°C

• Temperate coefficient of Voc: -(0.38+/-0.01)%/'C

• Temperature range: -40℃℃~+35℃

• Frame: Aluminum alloy frame

• Weight: 28.2 lbs(12.79 kg)

• Size: 1480*668*35mm(58.3x26.3x1.4 in)

SPECIFICATIONS:

• Display: LED digital

• Input Voltage: DC 13-50V

• Input Power: 450W

• Working Current: 12A

• Charge Efficiency: >93%

• Output Voltage: 48V/60V/72V

• Battery Type: Lead-acid/Lithium/GEL/Flooded

• Working Temperature: -20℃C~60℃(-4℉~140°F)

• Heat Dissipation: Cooling fan(Auto-turn-on at 131℉)

• Ingress Protection: lP30

• Size: 133*87*52mm(5.2*3.4*2.0 inch)

• Weight: 420g (0.93 lbs)

SPECIFICATIONS:

• Cable Type: Connecting Solar Panels to Charge Controllers

• Rating Voltage: 600/1000V

• Length: 5 meters(16 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: lP 65 Protection

• Temperature: -40°F to +185°F

• Connector: MC4

• Weight: 0.742KG

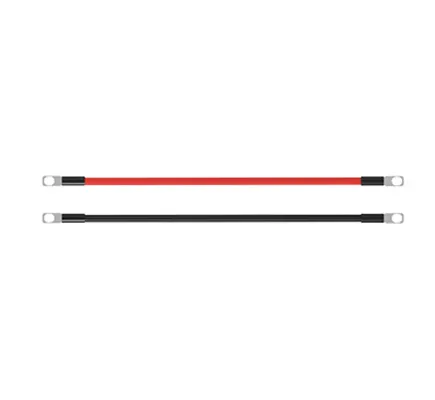

SPECIFICATIONS:

• Cable Type: Connecting Battery to Battery

• Rating Voltage: 600/1000V

• Rating Current: 30A

• Length: 30cm

• Conductor: Tinned copper wire

• AWG: 6mm2

• Waterproof: lP 65 Protection

• Temperature: -40°F to +185°F

• Connector Lug: (6mm)

• Weight: 0.046kg

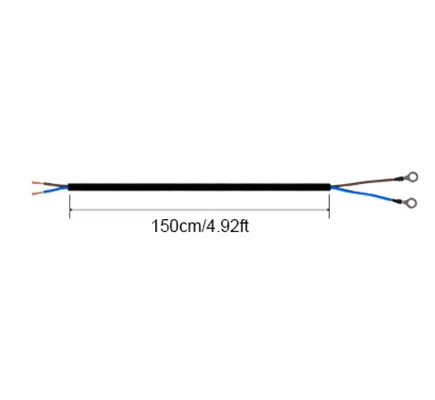

SPECIFICATIONS:

• Cable Type: Connecting Charge Controller to Battery

• Rating Voltage: 600/1000V

• Length: 1.5 meters(4.92 ft)

• Conductor: Tinned copper wire

• AWG: 11

• Normal Cross Sectional Area of the Conductor (mm2): 4

• Waterproof: lP 65 Protection

• Temperature: -40°F to +185°F

• Connector: Lug

• Weight: 0.3kg

Size	Illustration	Roof Size	Suitable Kit	Panel Size (single)	Daily Power Generation
2 Seat		54*48in	100w kit (1*100w solar panel)	38.6*21in	400wh (under 4 hours full sunshine)
4 Seat		80*48in	200w kit (2*100w solar panel)	38.6*21in	800wh (under 4 hours full sunshine)
6 Seat		116*48in	400w kit (2*195w solar panel)	58.2*26.3in	1600wh (under 4 hours full sunshine)
