ZEM is a market leader of forklift lithium battery.
72V Lithium batteries are commonly seen in 2.5T and 3T forklift supplied by Japanese makers.

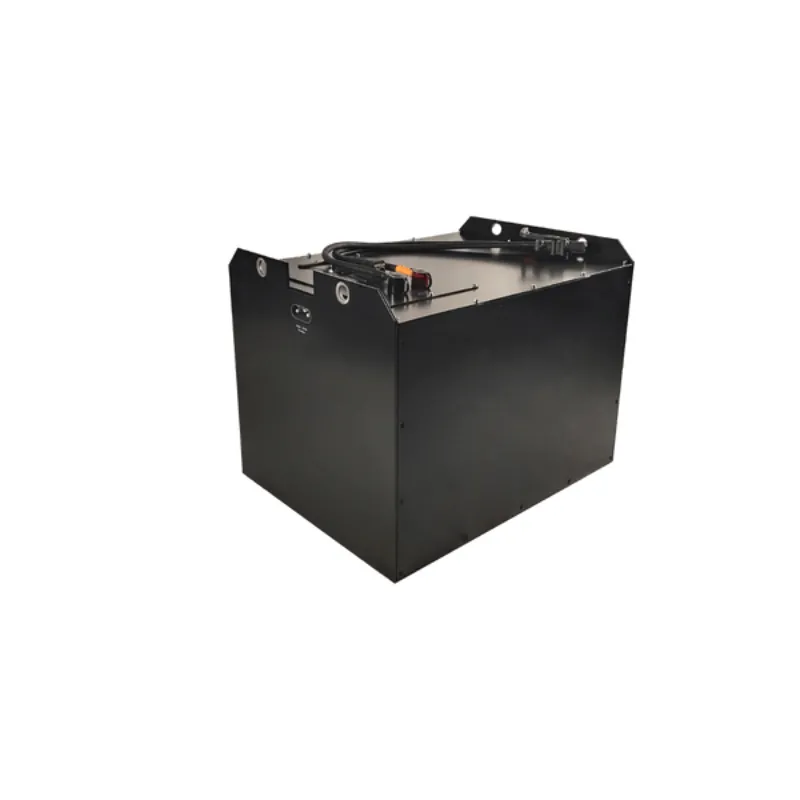

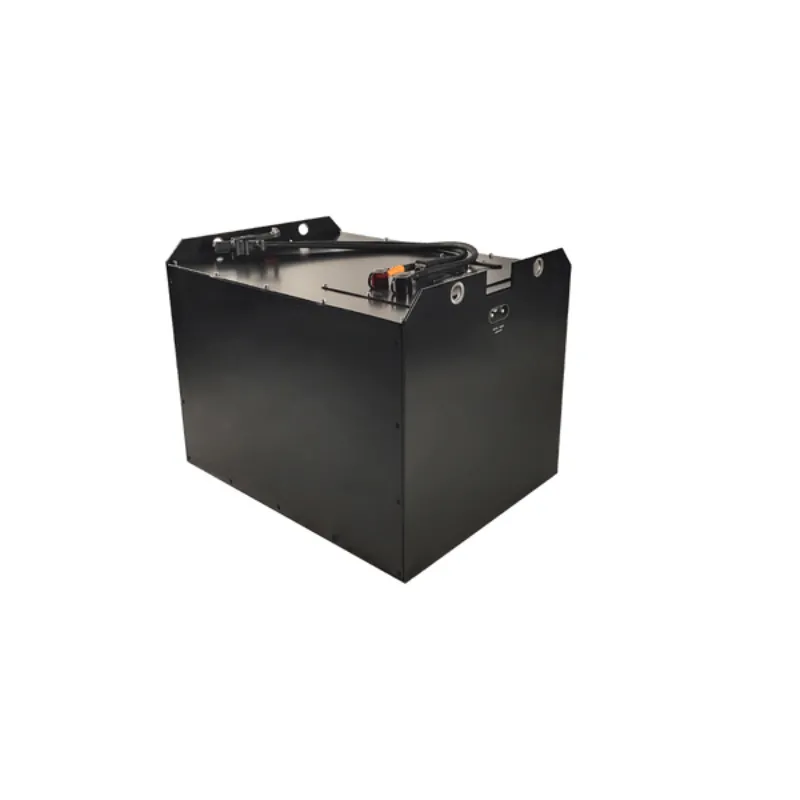

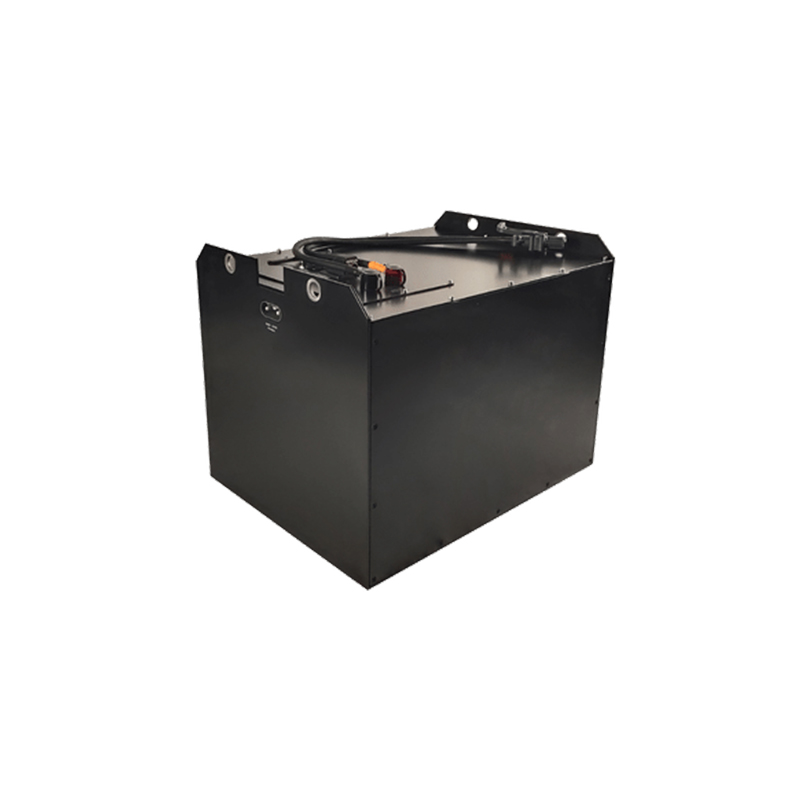

72V Forklift Lithium Battery
Lithium batteries are the most popular choice for forklifts because they have higher energy density than other types of batteries. The higher the energy density, the longer a battery will last on one charge and the more power it can provide. Lithium batteries are an excellent choice for many brands of forklifts!
72V Forklift Lithium Battery Application
72V forklift lithium battery is our high quality product. It has a higher power density than conventional lead-acid batteries. The following is the application of the product:
TOYOTA
KOMASTU
MISTUBISHI NICHIYU
72V Forklift Battery Technical Parameters
The 72V Forklift Lithium Battery provides a powerful alternative to lead-acid batteries. Constructed of engineered battery modules and encased in a single, compact unit, these batteries are extremely durable with customized weight and dimension as original batteries.
| Technical data | |
| Rated Voltage | 76.8V |
| Available Capacity | 210AH, 270AH, 300AH, 350AH, 405AH, 450AH, 525AH, 600AH700AH, 875AH |
| Cycle Life | > 3000 times |
| Battery Display | Color Touch |
| Charging Environmental Temperature | 0℃ to 55 ℃ |
| Working Environment Temperature | -20℃ to 50 ℃ |
| Cold Storage Option | Available |
| Dimension | MSD Type / Customized |
| Telematics | 4G/Standard |
| Weight | Standard / Customized |
Explore Our 72V Forklift Battery
longer service life
High energy density
Low self-discharge rate
low internal resistance, high discharge capacity
More safety protection devices, such as over-charge protection, over-discharge protection, short-circuit protection, etc.
How to choose the right charger for your forklift lithium battery?
Type of charger
There are two types of charger: constant voltage (CV) chargers and constant current (CC) chargers. CV chargers usually work at a constant voltage level, while CC chargers vary their output current based on the battery's state of charge (SoC).
To optimize charging and battery performance, we shall go for CC charger with integrated CAN-BUS communication with BMS.
Capacity of charger
Quick Charge is one of the key features of EKT Lithium battery, in order to inject power as much as possible within certain time-frame, we usually need high power charger at 0.5C of battery pack's capacity, for example : 6KW charger for a 12KWH battery Pack.
Input and Output Voltage
Output Voltage, your charger should have an output voltage range that matches your battery's voltage. For example, if you're using a 12-volt charger for 6-volt batteries, it won't work properly and may even damage your battery.
Input Voltage, in many countries, industrial grid power supply is 380Vac 3-Phase, however, there are different input in several specific regions with 220Vac 3-Phase, 480Vac 3-Phase, we need to ensure the input voltage specs does match your power supply.
Accessories
Some chargers come with accessories like wall adapters, power cords, and carrying cases to make them easier to use.
Advantages of 72V Forklift Battery
Sub-power supply
48V or 24V sub-power supply is usually mandatory for lamping and display of this kind of equipment, EKT offers proven and reliable solution.
Side Charge Feature
Side charge feature enhances the ergonomic and efficiency during operation, you can get customized side charge solution from our technical team for any of batteries.
Higher Capacity
Lithium batteries have a higher capacity than lead-acid batteries and can provide more electrical power for the same weight.
No Memory Effect
Lithium batteries do not suffer from the "memory effect" in some lead-acid batteries when they are repeatedly discharged to the same level.
