ZEM Forklift Battery has high power density, Good cycle life and High efficiency. Also, it has very reliable electrical performance.

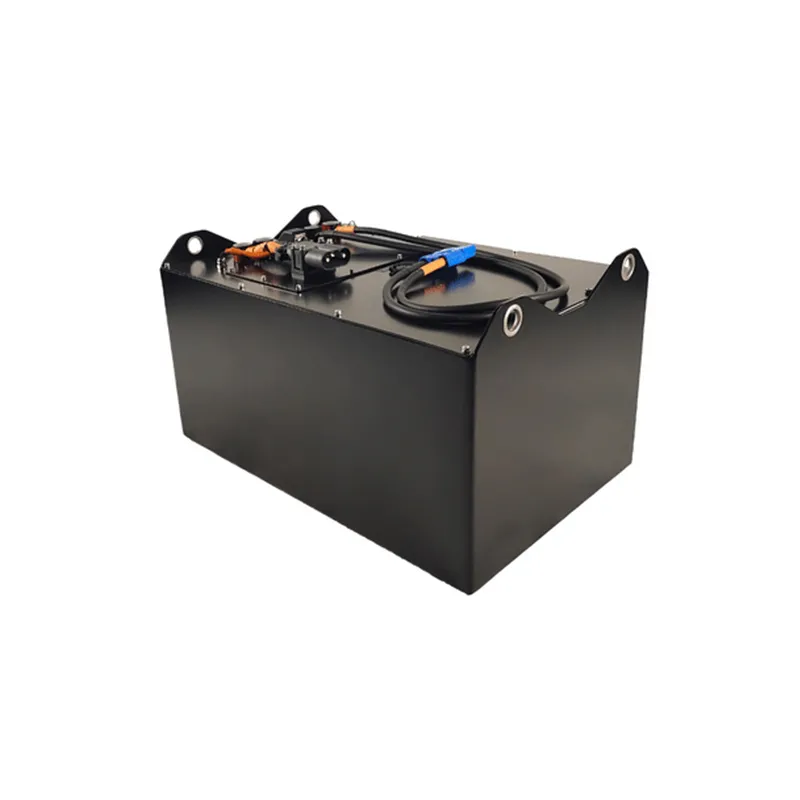

48V Forklift Lithium Battery
Lithium battery technology has been widely used in various fields. The 48V forklift lithium batteries are widely used in electric forklifts and reach trucks to replace lead-acid batteries. Because of its high energy density, low weight, and long life cycle, It is very suitable for industrial applications requiring high power for starting or peak loads.
48V Forklift Lithium Battery Application
Here are some application models of 48V lithium batteries:
1. Electric forklift
2. Electric reach truck
3. Electric towing tractor
48V Forklift Battery Technical Parameters
48V for forklift battery was mainly used in forklifts and other industrial vehicles. If you find it interesting and want to know more detailed information, welcome to contact us!
| Technical data | |
| Rated Voltage | 51.2V |
| Available Capacity | 150AH, , 210AH, 270AH, 300AH, 350AH, 405AH, 450AH, 525AH, 600AH, 700AH, 875AH |
| Battery Display | Color Touch |
| Charging Environmental Temperature | 0℃ to 55 ℃ |
| Cold Storage Option | Available |
| Cycle Life | > 3000 times |
| Dimension | MSD Type / Customized |
| Telematics | 4G/Standard |
| Weight | Standard / Customized |
| Working Environment Temperature | -20℃ to 50 ℃ |
Explore Our 48V Forklift Battery
High-capacity and lightweight construction, low self-discharge;
Long cycle life (more than 3000 cycles);
Excellent charge/discharge efficiency and high energy density;
Wide operating temperature range (-20℃ to 60℃);
No memory effect;
Maintenance-free;
Easy installation and maintenance;
How to Request a Customized Battery Solution?
Battery Drawing
We have more than 2000 battery solutions for all brands in database, however, in case you can not find the correct model from us, please submit the original battery drawing indicating all mechanical details.
Battery Drawing is a service that we offer for customers who would like to have a customized battery solution. It can be a custom battery or a battery with specific features and dimensions. The drawing is done by our engineering department and the customer receives all the necessary documents for mass production.

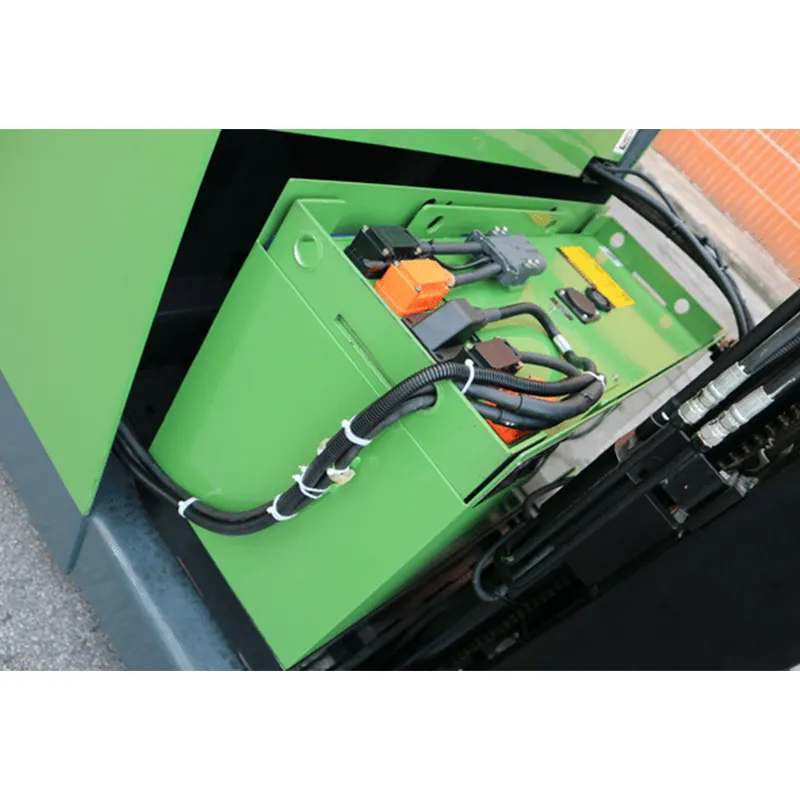

Battery Cable and Plug
Cable length from battery to forklift can be customized.
The connectors on the cable are different (male or female) depending on the type of connector you need.
Please also provide the plug type details of forklift so we can ensure the connectivity with battery.
The connectors on the cable are different (male or female) depending on the type of connector you need. The connectors on the cable are different (male or female) depending on the type of connector you need.
Working Temperature
Lithium Battery has a tolerance of temperature, in case of low or high temperature environment, please provide details.
If you want to know more about the working temperature of a battery, please contact us. We will provide you with a customized solution.
Voltage, capacity and weight
Battery Voltage, Battery Capacity, Battery minimum weight is 3 fundamental factors above all.
Advantages of 48V Forklift Battery

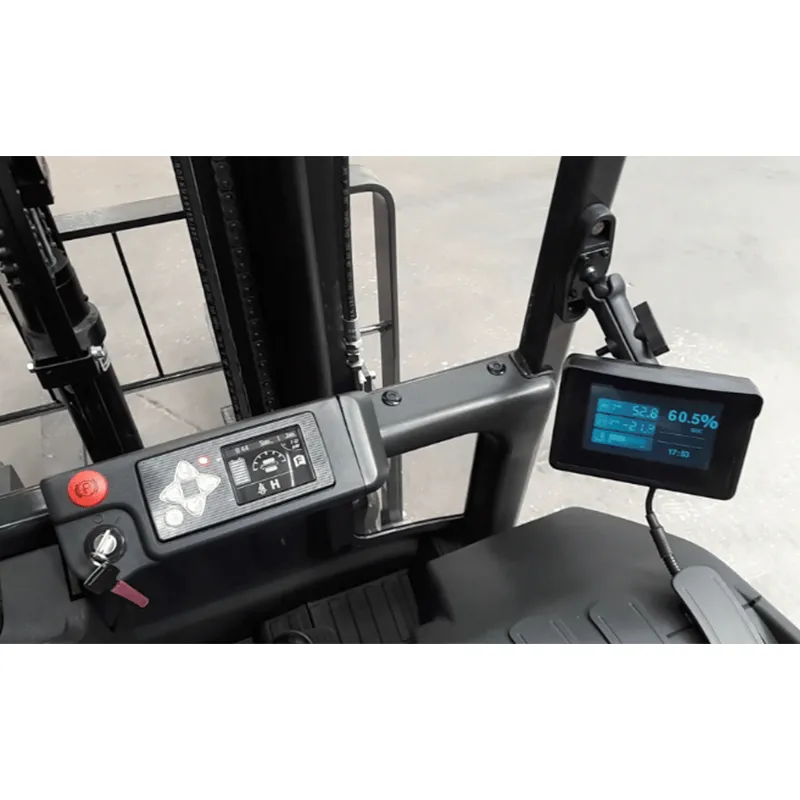

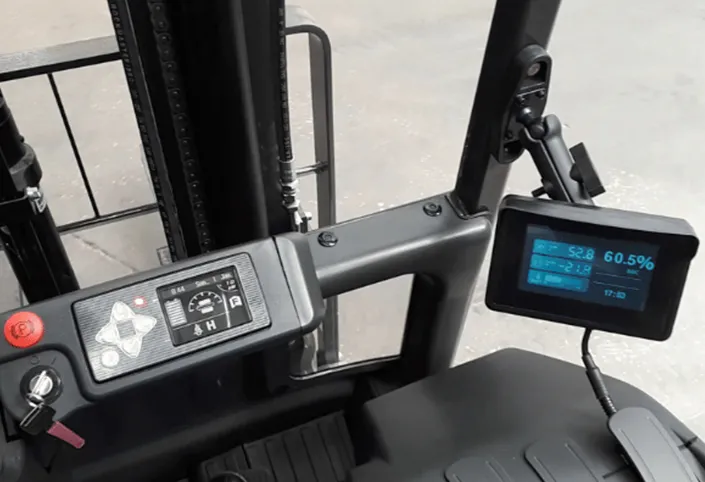

Telematics
The telematics system allows you to track your forklift and its battery. You can also monitor how much power it is using and how many hours it has been used for.
This type of system can be very useful for businesses which are concerned about the efficiency of their workforce and want to ensure that they are getting the most out of their equipment
Lower Ownership
Lithium batteries have lower ownership costs when compared to lead-acid batteries. This is because the technology used in lithium batteries allows for a greater number of cycles. For example, you can expect a lithium-ion battery to last for about 3,000 cycles, while a lead-acid battery might only last for 1000 cycles. Because of this, your business will not have to replace its forklift batteries as often and can save money on maintenance costs in the long run.
Maintenance Free
Lithium forklift batteries are maintenance-free, because they do not require water top up or electrolyte replacement. The electrolyte inside the battery is in gel form, so it does not evaporate like in flooded lead acid batteries. The only maintenance required for a lithium forklift battery is to check that the battery terminals are clean and tight.
Easier to Storage
Forklift lithium batteries have a low self-discharge rate of <1% per month at room temperature (25℃); the discharge rate of most other lead acid batteries is 20%-30% per month at 25℃. Because of the low self-discharge rate, the battery can be stored for a long time without recharging; meanwhile, it can also improve the stability and reliability of industrial production lines.
