ZEM 48V Battery Packs are the industry's most affordable and reliable motive power solutions while providing today's highest battery pack technology and performance.
The 48V motive battery is a lithium-ion battery used in electric vehicles and other high-performance vehicles. The main characteristics of this battery are that it has a longer life cycle and higher energy density than different types of batteries.
There are many advantages associated with using a 48V motive battery. You can use it to power your car or any other vehicle, and it will be able to perform well without causing any damage to your vehicle or causing accidents.

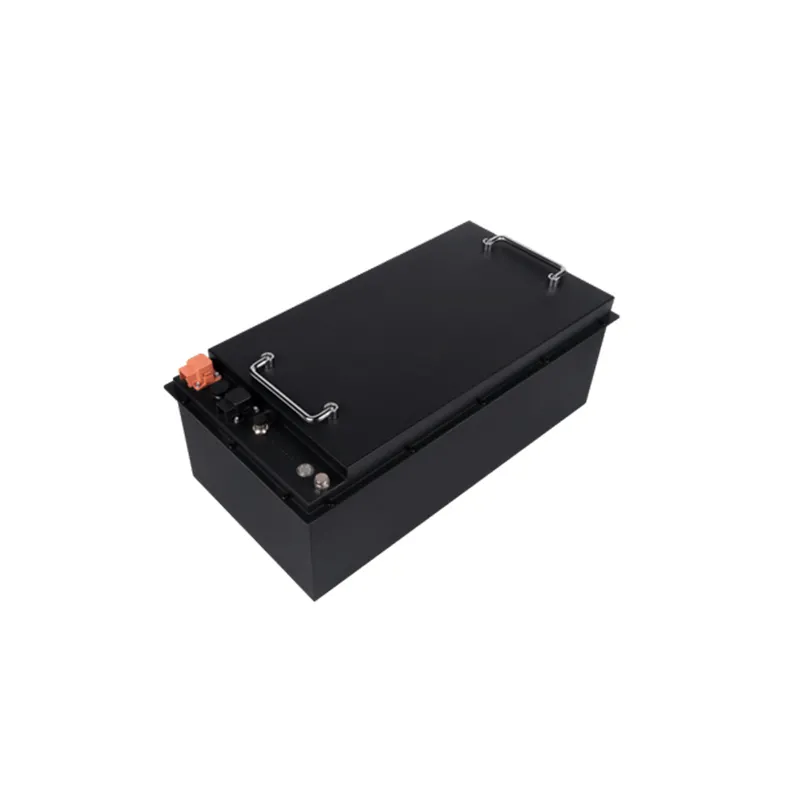

48V Motive Battery Technical Parameters
The ZEM battery is specially designed to fit lithium-ion electric vehicles, and provides excellent safety and energy density while maintaining the same form factor as a regular lead-based battery.
| Code | EM4860 | EM4860E | EM4890E | EM48120E | EM48120E |
| Li-Battery Size | 51.2V 60AH | 51.2V 60AH | 51.2V 90AH | 51.2V 120AH | 51.2V 120AH |
| Cell Layout | 2P16S | 2P16S | 3P16S | 4P16S | 4P16S |
| Total Capacity(KWH) | 3.07 | 3.07 | 4.61 | 6.14 | 6.14 |
| Dimension(MM) | 350*270*210 | 385*290*210 | 550*290*210 | 550*390*210 | 720*290*210 |
| Weight(KG) | 26.7 | 27.5 | 41.5 | 60.5 | 60.5 |
| Packaging Dimension(MM) | 400*320*252 | 425*330*263 | 590*330*263 | 590*430*263 | 760*330*263 |
| Rough Weight（KG） | 27.4 | 28.2 | 42.5 | 61.8 | 61.8 |
| Working Current | 60 | 60 | 90 | 120 | 120 |
| Protection Current | 180A/60S | 180A/60S | 270A/60S | 360A/60S | 360A/60S |
| Peak Discharge Current | 240A/30S | 240A/30S | 360A/30S | 480A/30S | 480A/30S |
| Serial Connection | Max 1S | Max 1S | Max 1S | Max 1S | Max 1S |
| Parallel Connection | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P |
| IP Protection | IP 65 | IP 67 | IP 67 | IP 67 | IP 67 |
Explore Our 48V Motive Battery
High-capacity, high-performance lithium-ion battery technology
High Security
Lightweight, excellent performance, and long life
Convenient installation and maintenance
No memory effect, fast charge mode, and long cycle life
Low self-discharge rate
What are the uses of motive power?
Lithium motive batteries are commonly used in various applications due to their high energy density, long cycle life, and reliability. Some popular uses of motive lithium batteries include:
Light electric vehicles (LEV): 48V lithium batteries are used in various LEVs, such as electric golf carts, neighborhood electric vehicles (NEV), and small commercial vehicles for efficient, low-emission transportation.
Robotics and automation: 48V lithium batteries can power various robotics and automation equipment, offering a reliable energy source for these systems.
Marine and recreational vehicles: 48V lithium batteries are used in electric boats, yachts, and recreational vehicles, providing a clean and efficient power source for propulsion and onboard systems.
