ZEM– 24V Motive Battery Manufacturer and Supplier, ZEM motive battery is one of the best in class propulsion battery with an excellent discharge performance.

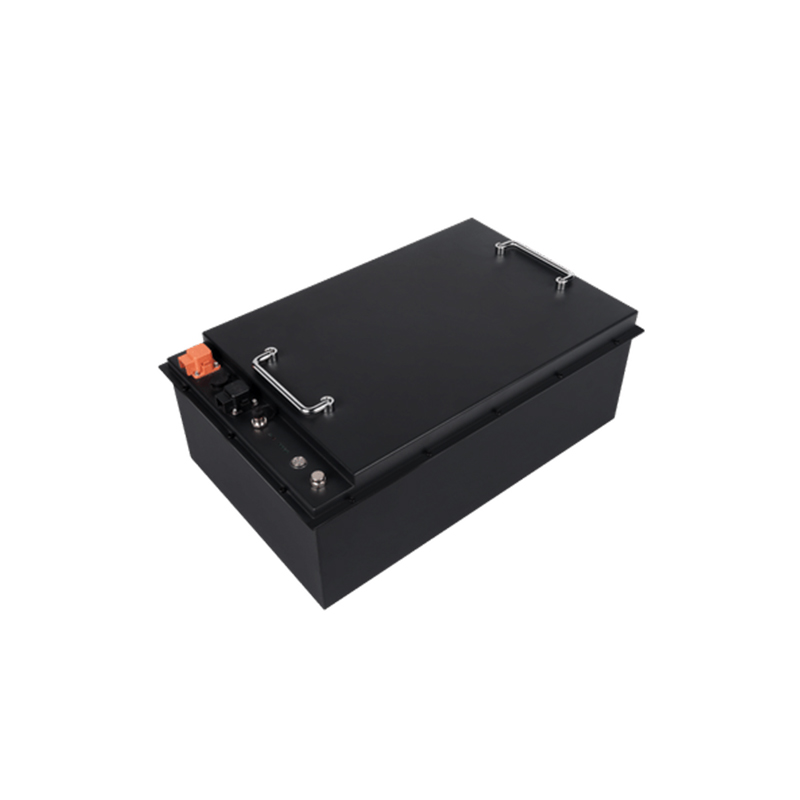

24V Motive Battery Technical Parameters
ZEM manufacturers and supplies Motive Batteries to suit a wide range of OEM applications. Innovative secondary battery technology based on solid engineering knowledge to provide cost-effective storage solutions for the commercial market.
| Code | EM2460 | EM2490 | EM24120 | EM2430 | EM24150E | EM24175E | EM24210E |
| Li-Battery Size | 25.6V 60AH | 25.6V 90AH | 25.6V 120AH | 25.6V 30AH | 25.6V 150AH | 25.6V 175AH | 25.6V 210AH |
| Cell Layout | 2P8S | 3P8S | 4P8S | 1P8S | 1P8S | 1P8S | 7P8S |
| Total Capacity(KWH) | 1.53 | 2.3 | 3.07 | 0.77 | 3.84 | 4.48 | 5.37 |
| Dimension(MM) | 270*175*210 | 330*270*210 | 350*270*210 | 245*150*210 | 505*260*210 | 505*260*210 | 550*350*210 |
| Weight(KG) | 14.6 | 22.5 | 26.7 | 10.5 | 37.9 | 39.3 | 48.5 |
| Packaging Dimension(MM) | 320*225*252 | 340*330*263 | 400*320*252 | 285*190*263 | 545*300*263 | 545*300*263 | 590*390*263 |
| Rough Weight（KG） | 15.1 | 23.2 | 27.4 | 11.1 | 38.9 | 40.3 | 49.7 |
| Working Current | 60 | 90 | 120 | 30 | 150 | 175 | 210 |
| Protection Current | 12A/60S0 | 270A/60S | 360A/60S | 60A/60S | 450A/60S | 525A/60S | 630A/60S |
| Peak Discharge Current | 240A/30S | 360A/30S | 480A/30S | 120A/30S | 600A/30S | 700A/30S | 840A/30S |
| Serial Connection | Max 2S | Max 2S | Max 2S | Max 2S | Max 2S | Max 2S | Max 2S |
| Parallel Connection | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P |
| IP Protection | IP 65 | IP 67 | IP 65 | IP 65 | IP 67 | IP 67 | IP 67 |
Explore Our 24V Motive Battery
Compared to a 12V battery, a 24V battery is more powerful, with more capacity and higher load capacity;
The profound cycle ability is much better than a 12V battery;
Using the same battery size, the weight of 24V Motive Battery will be less than half of that of 12V Motive Battery;
24V Motive Battery have a longer service life than 12V batteries;
What Type Of Battery Is A Motive Battery?
Motive batteries are a type of deep cycle battery. They are designed to be discharged and recharged many times over the course of their life. Motive batteries typically have a longer lifespan than other types of batteries and can withstand more charging cycles before they need to be replaced.
