HEAVY-DUTY LITHIUM-ION BATTERIES FOR TOYOTA, HYSTER-YALE, LINDE, TAYLOR, KALMAR, LIFT-FORCE AND RANIERO
As a leading full China Lithium-Ion battery provider, ZEM heavy-duty lithium-ion batteries are used by many fortune 500 companies including Toyota, Yale-Hester, Linde, Taylor, Kalmar, Lift-Force and Raniero.

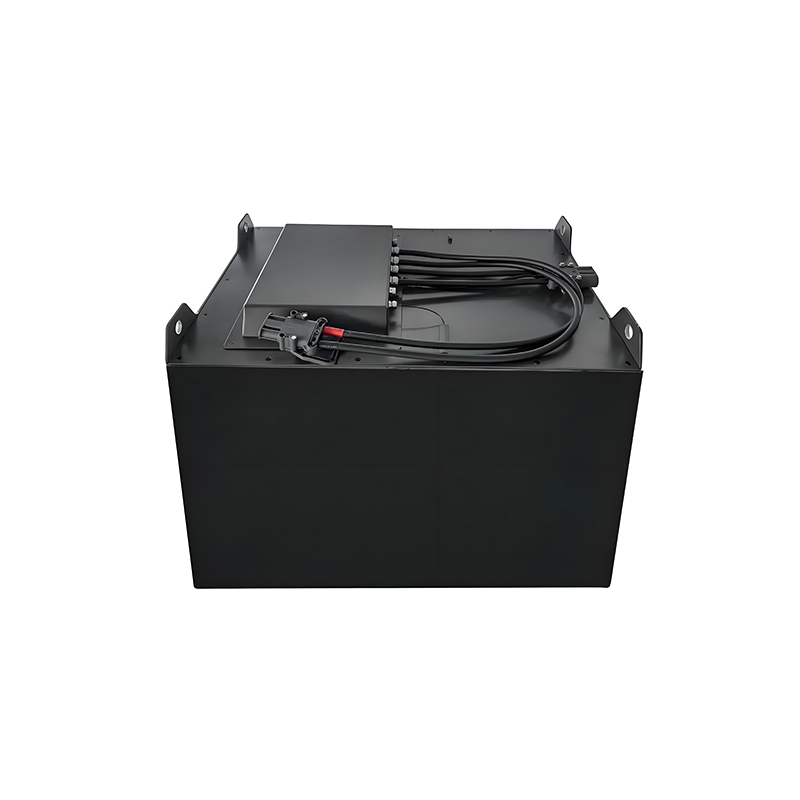

This complete battery system, made in china, consists of lithium-ion battery cells and modules, intelligent monitoring and control systems, extensive safety componentry, and a high-frequency opportunity/fast charger that communicates with the battery via CAN bus protocol.
With less than a 1% failure rate, ZEM heavy-duty lithium-ion batteries are proven reliable with unmatched quality. We provide integrated services where key system components such as heavy duty forklifts and Lithium Batteries are scaled, engineered, and customized for our clients as well as OEM industry partners.
Heavy-Duty lithium-ion batteries guarantee operations without disruption for the most demanding applications dealing with heavy loads (the beverage distribution, paper, lumber, and metal industries), high lift heights (very narrow aisle applications), massive attachments (paper roll clamps, push-pull, single-double).
Specifications
ELECTRICAL SPECIFICATIONS | |
Nominal capacity | 1440 Ah |
Open circuit voltage | 115.4V |
Self-discharge | <3% per month |
Cycle life | >3000 (at 10C discharge, 100% DoD) |
EqPb (Equals Lead acid battery) | 1728 Ah |
Voltage | 114V |
MECHANICAL SPECIFICATIONS | |
Dimensions (LxWxH) | 1770*1430*820mm |
Battery weight / Clump weight | 3886 kg / 8567Ib |
Case material | Commercial Grade Steel |
Ingress protection | IP67 |
Cell type / Chemistry | Diamond - LiFePO4 |
Group mode | 5S32P |
CHARGE & DISCHARGE SPECIFICATIONS | |
Charge method | CCCV |
AC voltage | 380V |
Maximum continuous charging | 400A |
Current | |
Continuous discharge current | 600A |
Discharge current continuous | 40A |
Discharge pulse current | 1440A |
Working Voltage Range | 89.6-115.4V |
TEMPERATURE SPECIFICATIONS | |
Charge temperature | 0°C to 50°C / 32°F to 131°F |
Discharge temperature | -20°C to 55°C / -4°F to 131°F |
Storage temperature | 0°C to 40°C / -4°F to 113°F |
COMPLIANCE SPECIFICATIONS | |
Certifications | CE, UN 38.3, UL2580, ISO9001, IEC |
Shipping classification | UN 3480 |
COMMUNICATION METHOD | |
Vehicle communication mode | CAN |
Display communication method | RS485 |
Performance
Low maintenance
Fast charging
Safest lithium technology
High discharge currents
High capacity
Low Temperature and High Efficiency
High cycle count
Low self-discharge
