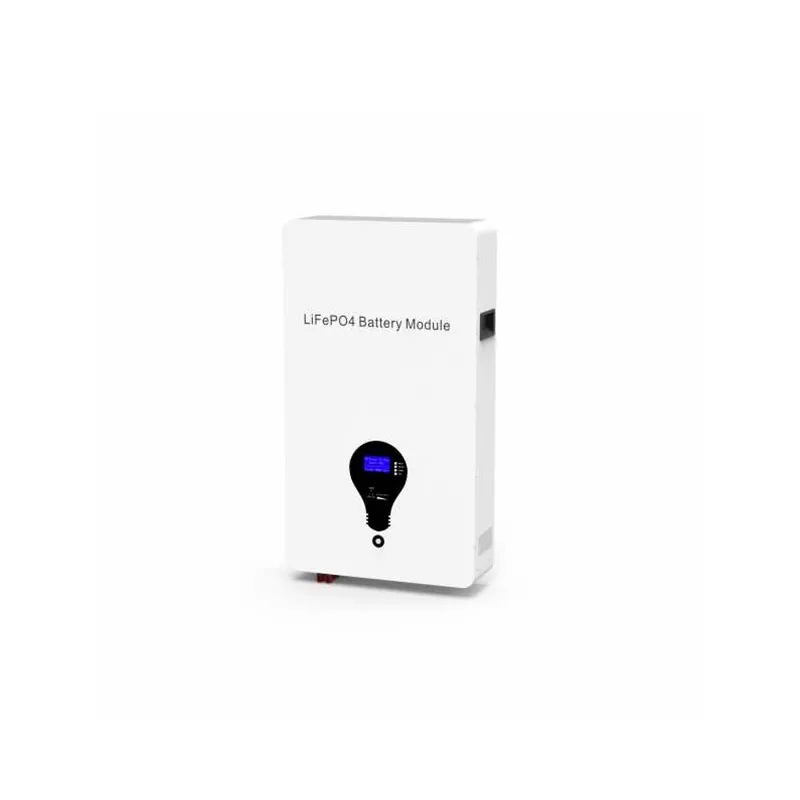

Type EM10240
Scope of application: hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Basic Parameters
Batteries materials: Lithium iron phosphate
Series parallel mode (S series, P parallel): 16S1P
Nominal voltage: 51.2V
Nominal capacity: 200Ah
Size (mm): 860*485*155
Weight: 95kg
Color: Optional
Parallel support: Parallel terminals are supported
Output port mode: terminal
Charging way: CC/CP/VP
Charging current: 0.2C (standard）
Maximum charging current: Max0.5C @25℃
Charge cut-off voltage: 58.4V/CELL
Discharge way: CC/CP/VP
Discharge current: 0.5C
Maximum discharge current: Max1C @25℃
Discharge cut-off voltage: 44.8V
According to: LCD
Communication interface: RS485/RS232/CAN
Charging operating temperature: charging: 0~+50℃
Discharge operating temperature: discharge: -20~+55℃
The quality assurance period: 36 months
